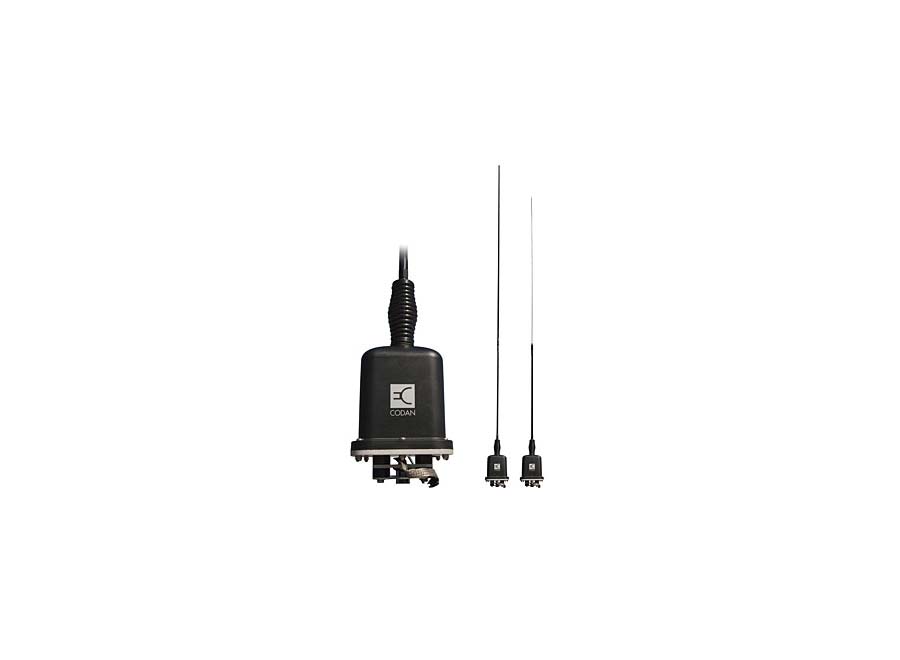

Codan 3040 Automatic Whip Antenna

The 3040 Automatic Whip Antenna is a low profile alternative to the highly successful 9350, and operates with both the NGT™ and 2110 family of radios. With a 70% reduction in height and almost half the weight of a 9350, the 3040 provides flexibility to installations.



Download datasheet



Product number

Codan 3040 Automatic Whip Antenna

Info build a list for quotation request
by collecting products in the basket.
To submit your request, click the basket logo and follow
further instruction.



Quantity:

Features

  • 2 to 30 MHZ
  • 125 W PE
  • Fast tuning 1 sec average
  • Memory tune < 150 m
  • Supports ALE and frequency hopping mode
  • Integral Active Wideband Receiver Amplifier for scanning
  • MIL-STD-810F (Temperature, Immersion, Vibration, Dust)
  • Designed to MIL-STD-461
Frequency range: 2.5 to 30 MHz (2.4 m Whip), 2 to 15 MHz (4.4 m NVIS)
Power rating: 125 W PEP (voice and data)
Power consumption: Typically 0.4 A, less than 0.8 A max
Input impedance: 50 Ω
VSWR: Typically ≤1.5:1
Tuning speed: New frequency 1 sec average, memory tune
Memory channels: Unlimited
Mechanical Temperature rating: –40°C to 70°C, 95% humidity
DC operating range: 11 to 15.5 V DC (12 V DC nominal)
Protection: Open circuit, short circuit, over voltage, over temperature, voltage transients, high VSWR
MIL-STD 810F: Temperature, Immersion, Dust, Vibration
MIL-STD-461: Designed to standard
Dimensions: 145 mm W x 165 mm D x 240 mm H (excludes spring and whip)
Weight: 3.15 kg including spring and whip
Mounting: M14 stud, 40 mm long
Colour: Black
