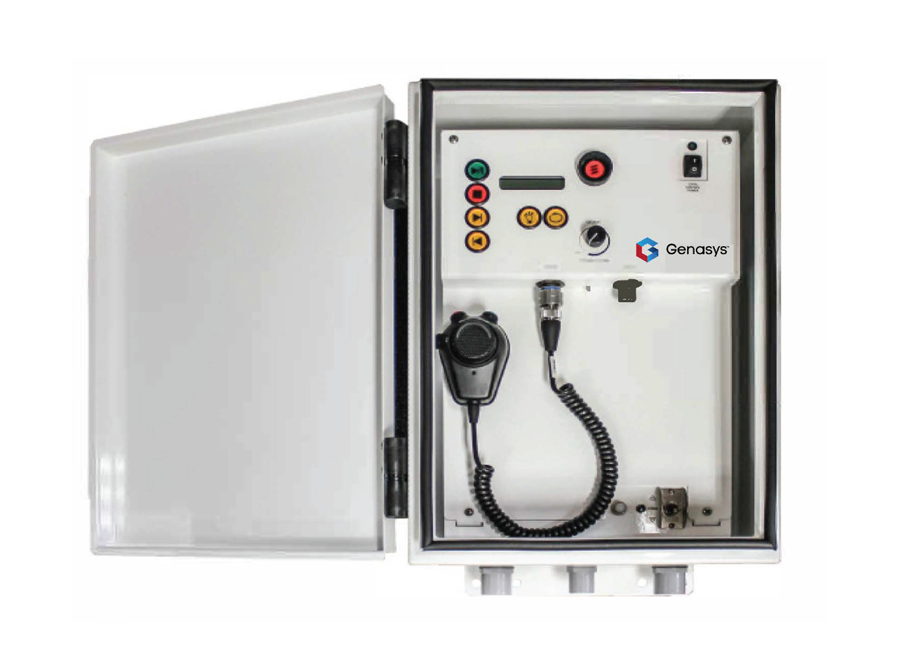

Compact Control Cabinet

Compact Control Cabinet

The Compact Control Cabinet powers and controls the 360XL Single Stack, 360XL MID Single and Dual Stack and up to four DS-60XL arrays.


The CCC includes a full-featured onboard microprocessor with  a 10/100 Mbps TCP/IP network interface. Genasys Command & Control software connects to the Control Unit over a TCP/IP network to activate recorded messages, sirens and tones, or stream live voice to one, several or all selected LRAD arrays.


The Compact Control Cabinet is designed for indoor or outdoor applications with flexible command and control from the cabinet or remotely via TCP/IP, WiFi, Fiber, GPRS/GSM, and/or L-Band Satellite.

Download Compact Control Cabinet datasheet

Product number

CompactControlCabinet

Info build a list for quotation request
by collecting products in the basket.
To submit your request, click the basket logo and follow
further instruction.



Quantity:
+  Add to basket

Features

  • Integrated, flexible indoor/outdoor control unit
  • Powers and controls 360XL Single Stack or up to four DS-60XL arrays
  • Easily integrates with existing public address and fire alarm systems, and other mass notification equipment
  • Stream real time voice to individual or grouped arrays remotely
  • Upload voice messages and tones over TCP/IP network or with the Control Unit’s included MP3 Player with a simple plug and play USB interface
  • 8 GB Standard message storage with up to 128 GB of expanded capacity
  • Standard TCP/IP connection enables flexible installation options including WiFi, Fiber, GPRS/GSM, L-Band satellite, and other options
  • On-site manual controls for activation of recorded messages from the included MP3 Player or live voice broadcasts with the included all-weather microphone
  • Standard Configuration is AC powered with battery backup. Runs continuously on AC power
  • Optional battery backup run on batteries continually charged by AC and Solar charger
  • Solar charger for off the grid operation with automatic power transfer switching (Grid, Solar, Battery)
  • Optional Satellite Connectivity
  • Fully weatherized for permanent indoor/outdoor installation with lockable hasp
