Touchcomputers with integrated intercom & voice communication modules ideal for your dispatch station.
build a list for quotation request
by collecting products in the basket.
To submit your request, click the basket logo and follow
further instruction.

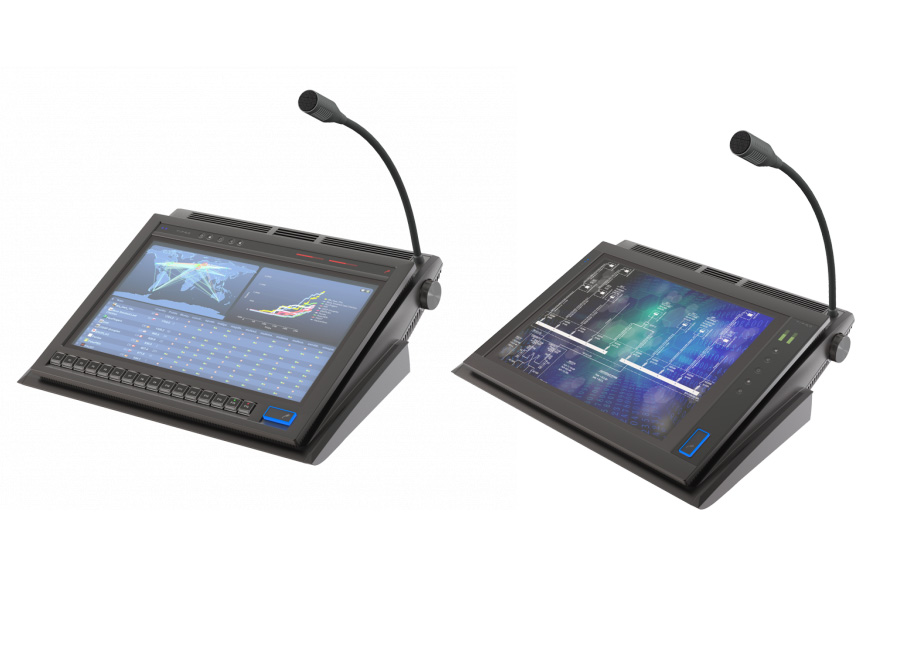

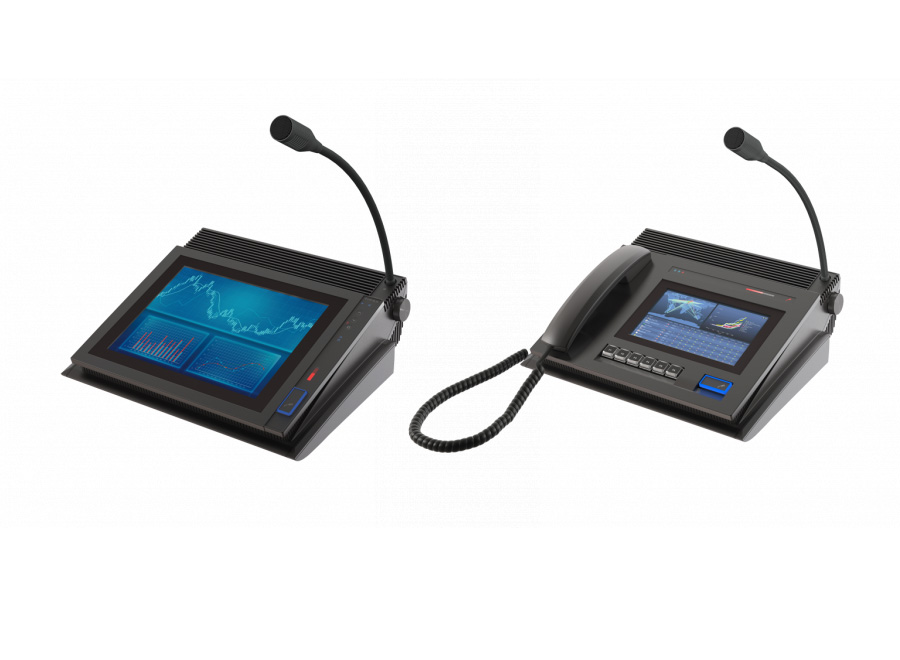

Touchcomputers with integrated intercom
Available models:
- BeFREE 22
- BeFREE 20
- BeFREE 10
- BeFREE 07
These touch screen computers are available with different display sizes, have central low-frequency loudspeaker (1 x 3W) with programmable equalizer, a goose-neck microphone with illuminated PTT key and a built-in Tipro controller.
Differences between BF22, BF20, BF10 and BF07
Voice communication modules

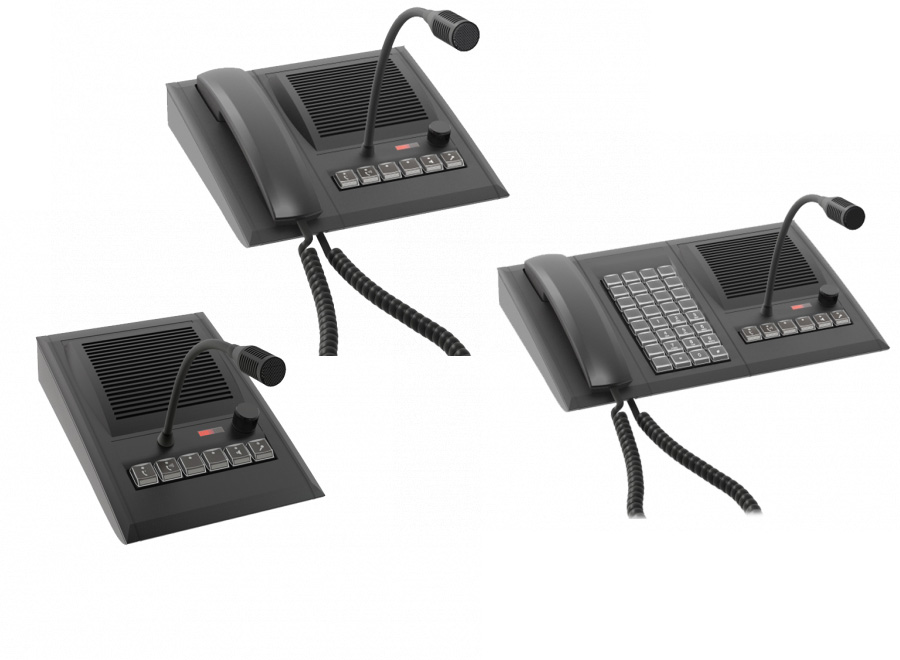

Speakerbox/Intercom
- add-on module or standalone device (if a Tipro controller is integrated in)
- combination of a USB audio device and an HID keyboard (plug&play operation with generic drivers)
- stereo loudspeakers and goose-neck microphone
- separate alert/alarm audio output
- connection for an external analogue headset and handset
- digital control over hands-free and optional headset/handset
- incremental encoder (endless potentiometer) for volume control
- three-colour bar-graph display as VU meter and/or volume indicator
- six programmable keys with LED indicators for mode control and volume adjustment
- analogue front-end designed to meet wide-band IP telephony standards
- programmable signal processing includes ambient noise suppression (noise gating), signal compression and limiting
- integrated acoustic shock protection
- optional HID telephony interface
- optional echo-cancellation circuity with a digital signal processor

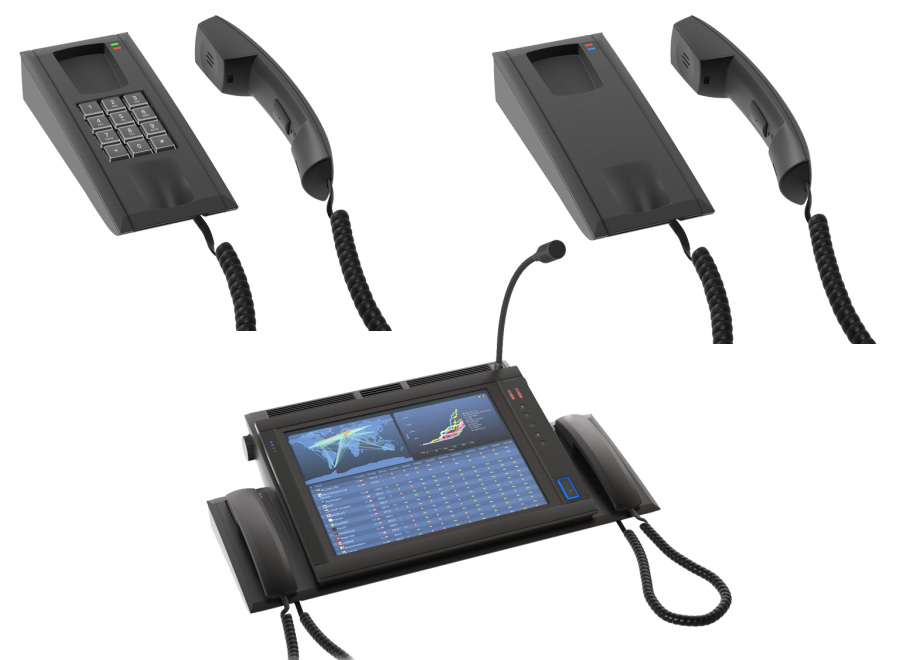

Handset
- add-on module or standalone device (if a Tipro controller is integrated in)
- combination of a USB audio device and an HID keyboard (plug&play operation with generic drivers)
- programmable PushToTalk key and Hook switch
- two RGB LED status indicators
- hardware generated side-tone
- software adjustable volume (loudspeaker and microphone) and side-tone level
- programmable signal processing includes ambient noise suppression (noise gating), signal compression and limiting
- analogue front-end designed to meet wide-band IP telephony standards
- integrated acoustic shock protection
- optional dial-pad in the cradle/base
- optional HID telephony interface
- optional analogue audio interface (instead of USB) for legacy systems
