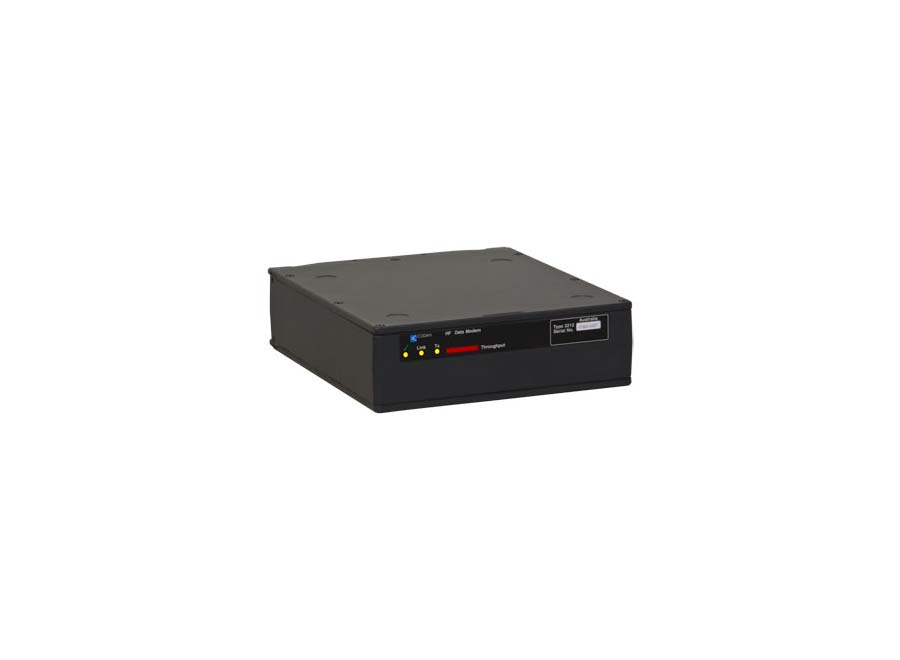

Codan 3212 HF Data Modem

Codan’s 3212 HF Data Modem ensures you get connected anywhere by providing reliable, cost-effective, high speed mobile data communications in remote areas where little or no telecommunications infrastructure exists.

The 3212 is based on the latest modem technology with an error-free data rate of up to 7200 bps uncompressed, typically four times faster than comparable competitors’ modems.



Download datasheet



Product number

Codan 3212 HF Data Modem

Info build a list for quotation request
by collecting products in the basket.
To submit your request, click the basket logo and follow
further instruction.

Quantity:

Features

Supported Waveforms: STANAG 4539 (modified), Codan 9001/9002/3012
Built-In-Test: Power-on self test, selectable internal audio and digital loop-back
Receive Audio: 600 Ω balanced, –30 to +3 dBm, Automatic Gain Control
Transmit Audio: 600 Ω Balanced, –30 to +10 dBm selectable
Keyline (PTT): Open Collector, active low
Power source:
13.5 V DC nominal (250 mA typical supply current)
10.5 to 15 V DC operational, reverse polarity and over-voltage protected to ±50 V
Cooling: Passive convection
Temperature:
0°C to +55°C operating (–40°C to +60°C storage)
32 to 131°F operating (–40 to +140°F storage)
Size and weight:
210 mm W x 240 mm D x 65 mm H (8.3” W x 9.4” D x 2.6” H)
2 kg (4.4 lb)
Compliance: CE, FCC and C-Tick
High Performance
The 3212 HF Data Modem uses waveforms derived from Military Standard (MIL-STD) Waveforms.

Reliable Email over HF
With Codan’s UUPlus Email for HF software, the 3212 provides an easy and reliable means to send email over HF from remote areas.

Advanced Automatic Link Establishment (ALE) Compatibility
When used with FED-STD-188-141B ALE, the 3212 HF Data Modem and transceiver establish the link by automatically selecting the best channel, link quality and data rate.

Ethernet & RS232 Interfaces
Modem control is provided through a configurable Ethernet port using either a fixed IP or DHCP addressing, or an RS232 port.
