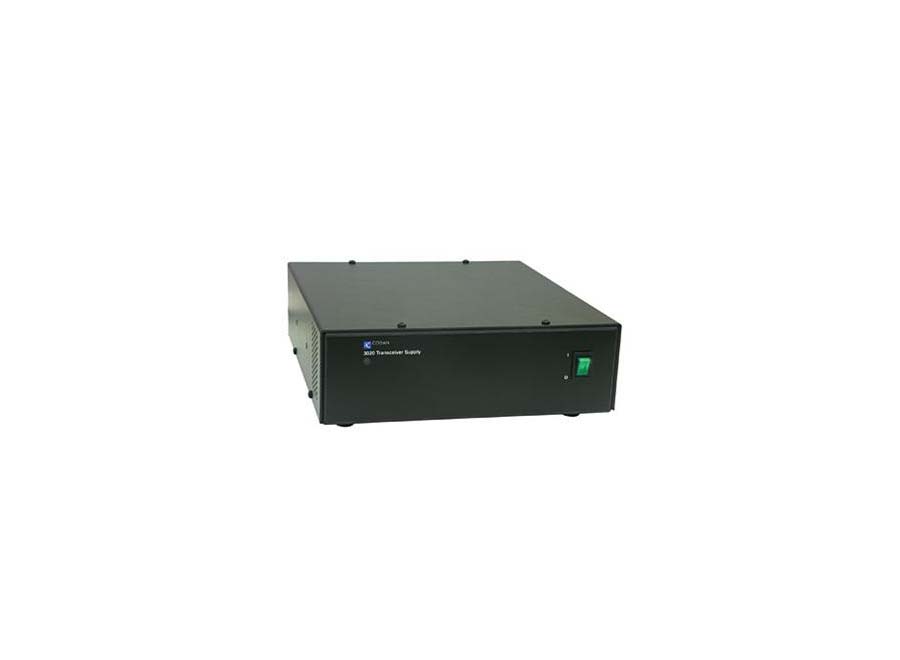

Codan 3020 Transceiver supply

The 3020 Transceiver Supply interfaces with Codan transceivers for voice, data or fax communications. It operates over a wide range of mains supply voltages, and is fully auto-ranging between 100 and 240 V nominal.



Download datasheet

Product number

Codan 3020 Transceiver supply

Info build a list for quotation request
by collecting products in the basket.
To submit your request, click the basket logo and follow
further instruction.



Quantity:

Features

Input voltage:
Operates over:
100–240 V AC ±10% (50/60 Hz)
Input VA: 250 VA at 16 A DC output current
Output voltage: 13.8 V DC
Output current: 16 A DC continuous duty to 60°C ambient 20 A DC peak speech
Cooling: Fan forced air—thermally controlled
Size and weight: 210 mm W x 230 mm D x 80 mm H; 1.9 kg
Regulation: Less than 0.1 V DC over no-load through to full load conditions for full input voltage range
Mains connection: Via IEC type socket at rear of unit
Rugged design
The 3020 Transceiver Supply is small and lightweight, and withstands the toughest conditions. It offers input, output and thermal protection.

Continuous supply
The 3020 is capable of charging and maintaining an externally connected lead-acid battery. When used with a code 702 kit, this facility provides a continuous supply to the transceiver in the event of a mains failure.

Front panel display
A Bi-Colour LED and green mains switch, mounted on the front panel, provides a clear indication of the 3020’s condition.

Service and Support
As with all Codan equipment, the 3020 Power Supply comes with a full three year warranty and is backed by Codan’s global network of service and support centres.
