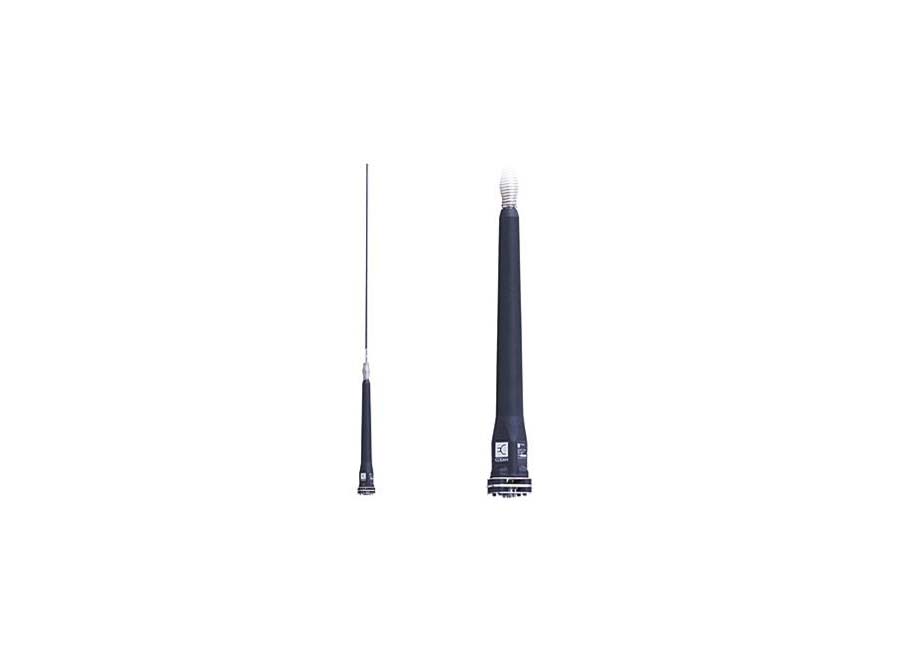

Codan 9350 Automatic Tuning Whip Antenna

Codan 9350 Automatic Tuning Whip Antenna

Codan’s internationally acclaimed 9350 Automatic Tuning Whip Antenna is designed for mobile operation with transceivers that have a large channel capacity.

The 9350 Antenna is constructed to withstand harsh field and environmental conditions. It meets or exceeds the shock and vibrations requirement for MIL-STD-810.

Typically, the 9350 takes only a few seconds to tune to any frequency. It will seek the optimum tuning point for all operating conditions — this ensures the best communications possible.



Download datasheet



Product number

Codan 9350 Automatic Tuning Whip Antenna

Info build a list for quotation request
by collecting products in the basket.
To submit your request, click the basket logo and follow
further instruction.



Quantity:
+  Add to basket

Features

Frequency range:
Primary whip top: Transmit operation: 2–30 MHz
Secondary whip top: Transmit operation: 2.5–30 MHz
Receive-only: 250 kHz – 30 MHz (Scan mode/Free Tune Receiver mode)
Power rating: 125 watts PEP (voice)
Power consumption:
Static: 150 mA
Tuning: 1 A (12 V DC nominal —supplied from the transceiver)
Input impedance: 50 Ω: VSWR typically 1.5:1
Operating temperature: –40 to +60°C
Tuning speed: Typically 2 seconds
Size and weight: Primary whip: 2.47 m ; 5.8 kg
Show more
Rugged design
The 9350 Antenna is constructed to withstand harsh field and environmental conditions. It meets or exceeds the shock and vibrations requirement for MIL-STD-810.

Fast, optimum tuning
Typically, the 9350 takes only a few seconds to tune to any frequency

High radiation efficiency
The 9350 antenna has a comparably high rate of radiation efficiency, rated for maximum voice power of 125 watts PEP.

Continuous tuning
The whip antenna provides continuous tuning to any required frequency over the transmit/receive operating range of 2–30 MHz.

Two whips supplied
Two whip top sections are provided with the 9350 antenna – the primary whip encased in polyurethane covered fiberglass, and a shorter backup whip made from stainless steel.

Sensitive to weak signals
When in Scan or Free Tune Receiver mode, a broadband amplifier is activated. This makes the antenna sensitive to even the weakest signals over the entire frequency range.
