Cambium PTP 820

Licensed Ethernet microwave for multi-service networks

PTP 820 is a point-to-point licensed microwave backhaul platform that integrates leading networking functionality with the industry’s most advanced microwave technologies, creating a superior transport solution.

Product number

Cambium_PTP_820

Info build a list for quotation request
by collecting products in the basket.
To submit your request, click the basket logo and follow
further instruction.

Quantity:

Features

  • Frequency Bands. Licensed frequency bands 6-38 GHz
  • Bandwidth Supported. Up to 80 MHz channel width
  • Adaptive Coding and Modulation (ACM). Up to 2048 QAM, with 11-step hitless and errorless ACM
  • Radio Capacity. Multi-gigabits radio capacity with high spectral efficiency
  • High Reliability. High system gain
  • Integrated Synchronization. Integrated synchronization solution: SyncE/IEEE 1588v2

Supporting licensed frequency bands ranging from 6 to 42 GHz, the PTP 820 series delivers a wide range of configurations to offer a tailored solution for any deployment scenario. High-density multi-technology nodes and integrated radio units enable flexibility in choosing split-mount and all-outdoor configuration options. Implementing unique Line of Sight (LOS) and Multiple Input Multiple Output (MIMO) technologies, and modulation across bandwidths above 2048QAM, ensures Industry-leading throughput and spectral efficiency.


Available products:

PTP 820S is an all-outdoor point-to-point licensed microwave unit

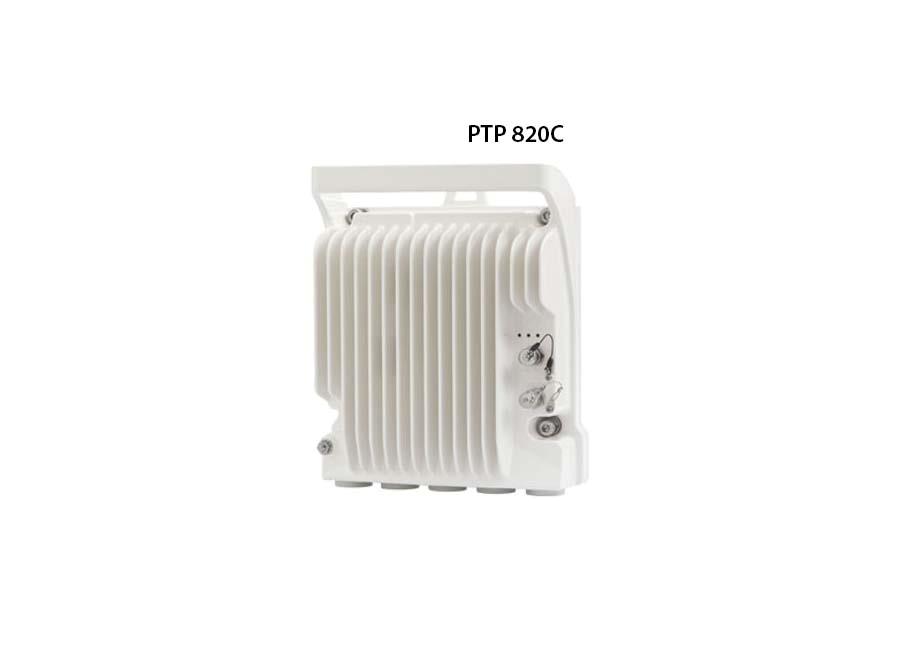

PTP 820C is an all-outdoor, multi-core unit. The PTP 820C has dual-core functionality enabling the system to operate up to 2 Gbps via software upgrades, eliminating the need for future forklift upgrades, or major system overhaul by the network operator to deliver gigabit-plus capacity.

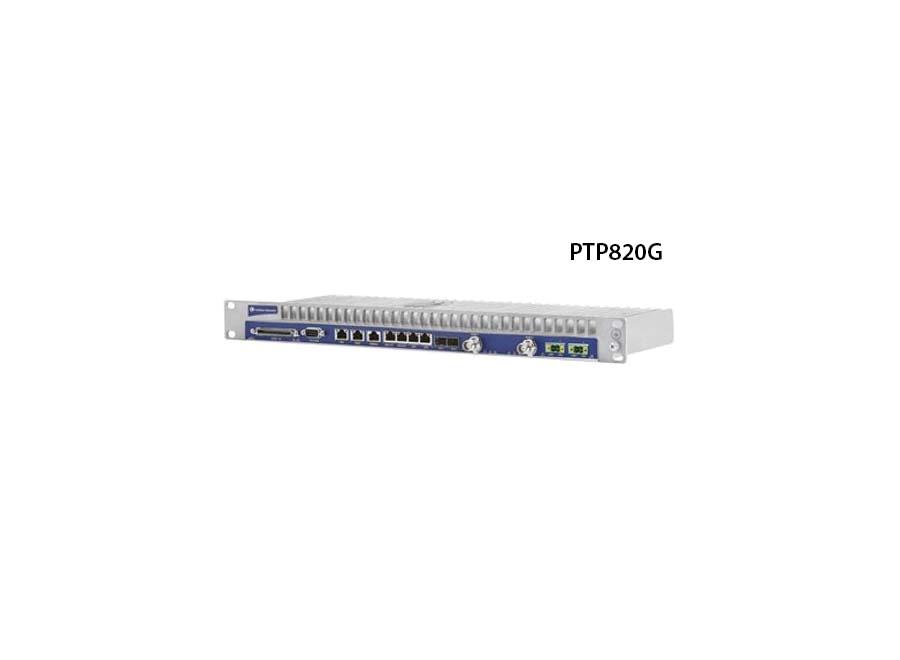

PTP 820G is a split-Mount / All-Indoor unit, with Multi-Carrier Options
