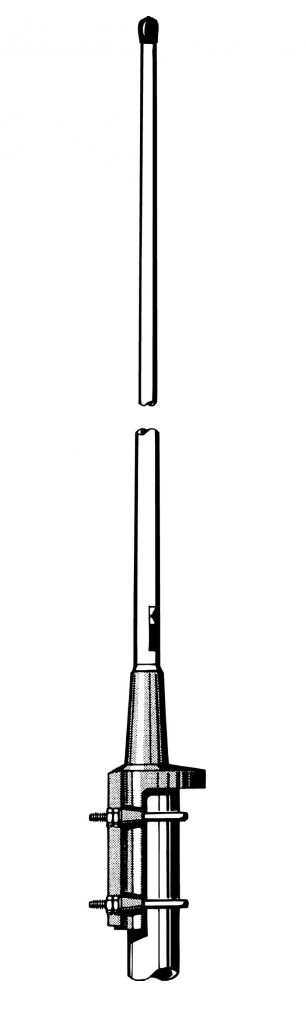

Procom antenna CXL 70-3C/...

Collinear, 3 dBd Base Station and Marine Antenna for the 450 MHz Band

Product number

Procom antenna CXL 70-3C/...

Info build a list for quotation request
by collecting products in the basket.
To submit your request, click the basket logo and follow
further instruction.

Quantity:

Features

Collinear, 3 dBd Base Station and Marine Antenna for the 450 MHz Band

  • CXL 70-3C/… is a 3 dBd, vertically polarized, omnidirectional base station and marine antenna, which covers the 380 – 470 MHz band in 4 models with up to 10 MHz overlap.
  • The antenna is provided with our “C” universal fixation bracket made of epoxy-coated, seawater resistant aluminium. The accompanying U-bolts and fittings are made of stainless steel.
  • CXL 70-3C/… can be mounted on 27 to 65 mm dia. mast tubes, and it is possible to lead the cable either along the inside or on the outside of the mast tube.
  • The carefully designed radiating element is sealed in a high-quality, conical glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The exceptional mechanical capabilities of this antenna ensures long dependable service in all environments.
Electrical Mechanical
  • Model: CXL 70-3C...
  • Antenna type: Collinear, broad-banded
  • Frequency range: 30 MHz wide frequency segments within 380 – 470 MHz. See model survey.
  • Impedance: Nom. 50 Ω
  • Radiation: Omnidirectional
  • Polarization: Vertical
  • Gain: 5 dBi 3 dBd
  • Half power beamwidth: 30°
  • Bandwidth: 30 MHz
  • SWR: ≤ 1.5
  • Max. power: 150 W
  • Antistatic protection: All metal parts DC-grounded (Connector shows a DC-short)
  • Temp. range: -30°C → +70°C
  • Connector: N-female
  • Wind surface: 0.032 m²
  • Wind load: 40 N @ 160 km/h
  • Colour: Marine white
  • Materials:
    Shroud: Polyurethane-coated glass fibre
    Mounting bracket: Seawater resistant aluminium, epoxy-coated
    Clamps: Stainless steel
  • Total height: Approx. 1.45 m (dep. on freq.)
  • Dia. in top end: 16 mm
  • Dia. in bottom end: 25 mm
  • Weight: Approx. 2.4 kg
  • Mounting: On 27 – 65 mm dia. mast tube
